TXC晶振,AT-20.500MDHQ-T晶振,汽車音響系統晶振

產品簡介

TXC晶振,AT-20.500MDHQ-T晶振,汽車音響系統晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈晶振，大燈控制器晶振，小尺寸晶振，耐高溫晶振，金屬罐型，晶體， AT系列HC-49S SMD，特征，表面貼裝型晶體單元。工作溫度范圍寬。·惡劣環境下性能優越可靠。符合RoHS標準/無鉛。

產品詳情

TXC晶振,AT-20.500MDHQ-T晶振,汽車音響系統晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈晶振，大燈控制器晶振，小尺寸晶振，耐高溫晶振，金屬罐型，晶體， AT系列HC-49S SMD，特征，表面貼裝型晶體單元。工作溫度范圍寬。·惡劣環境下性能優越可靠。符合RoHS標準/無鉛。

TXC晶振,AT-20.500MDHQ-T晶振,汽車音響系統晶振

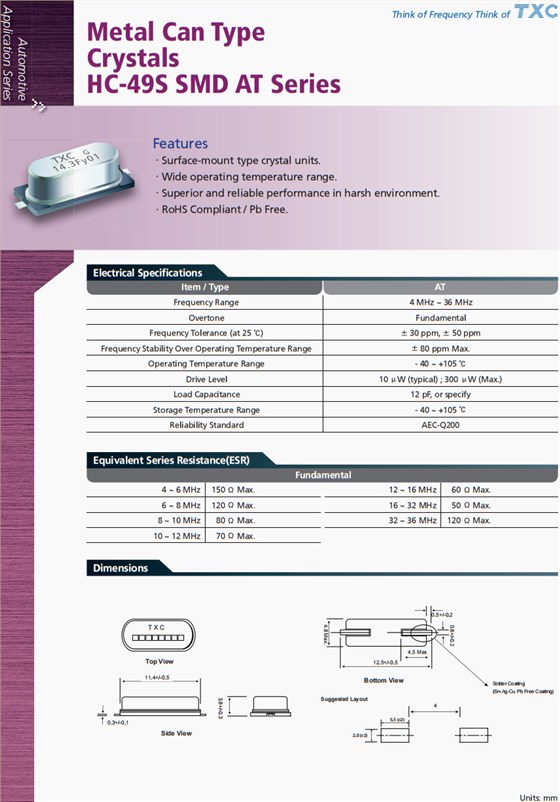

型號	AT
頻率范圍	4 MHz ~ 36 MHz
工作模式	Fundamental
頻率容差	± 30 ppm, ± 50 ppm
溫度范圍內的頻率穩定度	± 80 ppm Max.
工作溫度	- 40 ~ +105 ℃
驅動電平	10 μW (typical) ; 300 μW (Max.)
負載電容	12 pF, or specify
儲存溫度范圍	- 40 ~ +105 ℃
可靠性標準	AEC-Q200

TXC晶振,AT-20.500MDHQ-T晶振,汽車音響系統晶振

TXC原廠編碼	生產商品牌	Series	頻率	頻率穩定度	頻率容差	負載電容	工作溫度
AT-6.000MAGB-T	TXC晶振	AT	6MHz	±50ppm	±30ppm	8.5pF	-40°C ~ 85°C
AT-16.000MAOQ-T	TXC晶振	AT	16MHz	±100ppm	±30ppm	10pF	-40°C ~ 105°C
AT-16.000MAPY-T	TXC晶振	AT	16MHz	±50ppm	±30ppm	7pF	-40°C ~ 105°C
AT-16.000MAQE-T	TXC晶振	AT	16MHz	±30ppm	±30ppm	12pF	-40°C ~ 105°C
AT-16.000MBGJ-T	TXC晶振	AT	16MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
AT-16.000MDHE-T	TXC晶振	AT	16MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
AT-16.000MDHK-T	TXC晶振	AT	16MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AT-16.000MDIE-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	12pF	-40°C ~ 85°C
AT-16.000MDIJ-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
AT-16.000MDIV-T	TXC晶振	AT	16MHz	±20ppm	±20ppm	8pF	-40°C ~ 85°C
AT-16.666MBGJ-T	TXC晶振	AT	16.666MHz	±50ppm	±50ppm	18pF	-40°C ~ 85°C
AT-16.9344MAHE-T	TXC晶振	AT	16.9344MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-16.9344MDHE-T	TXC晶振	AT	16.9344MHz	±30ppm	±20ppm	12pF	-40°C ~ 85°C
AT-18.000MAGI-T	TXC晶振	AT	18MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AT-18.432MAPQ-T	TXC晶振	AT	18.432MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
AT-20.000MDGE-T	TXC晶振	AT	20MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-20.49978MDHQ-T	TXC晶振	AT	20.49978MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-20.500MDHQ-T	TXC晶振	AT	20.5MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-23.51222MFHE-T	TXC晶振	AT	23.51222MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
AT-24.000MAHE-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-24.000MAHJ-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
AT-24.000MAHK-T	TXC晶振	AT	24MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-24.576MAGD-T	TXC晶振	AT	24.576MHz	±50ppm	±30ppm	11pF	-40°C ~ 85°C
AT-24.576MDHK-T	TXC晶振	AT	24.576MHz	±30ppm	±20ppm	20pF	-40°C ~ 85°C
AT-25.000MAHE-T	TXC晶振	AT	25MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-27.000MAGI-T	TXC晶振	AT	27MHz	±50ppm	±30ppm	16pF	-40°C ~ 85°C
AT-27.000MAHK-T	TXC晶振	AT	27MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-27.000MAOJ-T	TXC晶振	AT	27MHz	±100ppm	±30ppm	18pF	-40°C ~ 105°C
AT-27.000MAPJ-T	TXC晶振	AT	27MHz	±50ppm	±30ppm	18pF	-40°C ~ 105°C
AT-27.120MAHQ-T	TXC晶振	AT	27.12MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-28.63636MAGK-T	TXC晶振	AT	28.63636MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
AT-28.63636MAHE-T	TXC晶振	AT	28.63636MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-28.63636MAHI-T	TXC晶振	AT	28.63636MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-28.63636MDGE-T	TXC晶振	AT	28.63636MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-30.429MAGE-T	TXC晶振	AT	30.429MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
AT-33.8688MAHQ-T	TXC晶振	AT	33.8688MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-33.8688MDHJ-T	TXC晶振	AT	33.8688MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
AT-33.8688MDHQ-T	TXC晶振	AT	33.8688MHz	±30ppm	±20ppm	10pF	-40°C ~ 85°C
AT-37.050MAHV-T	TXC晶振	AT	37.05MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
AT-4.000MAFK-T	TXC晶振	AT	4MHz	±100ppm	±30ppm	20pF	-40°C ~ 85°C
AT-4.000MAGH-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	15pF	-40°C ~ 85°C
AT-4.000MAGJ-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AT-4.000MAHE-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-4.000MAHI-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-4.000MAHK-T	TXC晶振	AT	4MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AT-4.000MAPE-T	TXC晶振	AT	4MHz	±50ppm	±30ppm	12pF	-40°C ~ 105°C
AT-4.000MBFI-T	TXC晶振	AT	4MHz	±100ppm	±50ppm	16pF	-40°C ~ 85°C
AT-4.000MDGE-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-4.000MDGI-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	16pF	-40°C ~ 85°C
AT-4.000MDGJ-T	TXC晶振	AT	4MHz	±50ppm	±20ppm	18pF	-40°C ~ 85°C
AT-4.000MDHC-T	TXC晶振	AT	4MHz	±30ppm	±20ppm	9pF	-40°C ~ 85°C
AT-4.000MDHJ-T	TXC晶振	AT	4MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
AT-4.000MFHH-T	TXC晶振	AT	4MHz	±30ppm	±15ppm	15pF	-40°C ~ 85°C
AT-4.007MAHQ-T	TXC晶振	AT	4.007MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
AT-4.9152MDGE-T	TXC晶振	AT	4.9152MHz	±50ppm	±20ppm	12pF	-40°C ~ 85°C
AT-41.600MDGQ-T	TXC晶振	AT	41.6MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
AT-5.000MAHE-T	TXC晶振	AT	5MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
AT-5.000MAHI-T	TXC晶振	AT	5MHz	±30ppm	±30ppm	16pF	-40°C ~ 85°C
AT-6.000MABK-T	TXC晶振	AT	6MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
