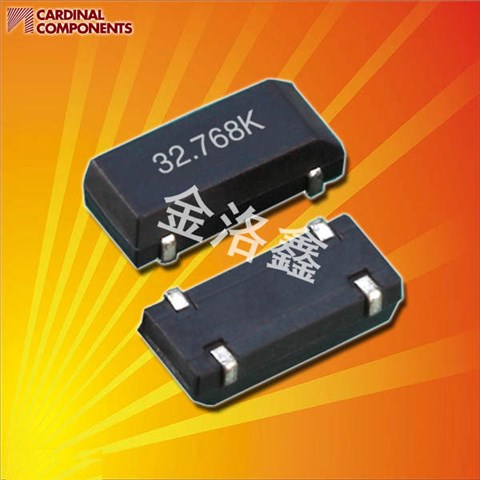

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪納爾進口晶振,32.768KHz,CPFBZ-A2C4-32.768KD6晶振,工作溫度-40~85°C,卡迪納爾進口晶振,32.768KHz晶振,負載6pf,精度10ppm,環保晶振,耐高溫晶振,石英SMD晶振,歐美無源晶振,實時時鐘晶振,測試測量設備晶振,通信設備晶振,智能電表晶振,家電影音系統晶振.

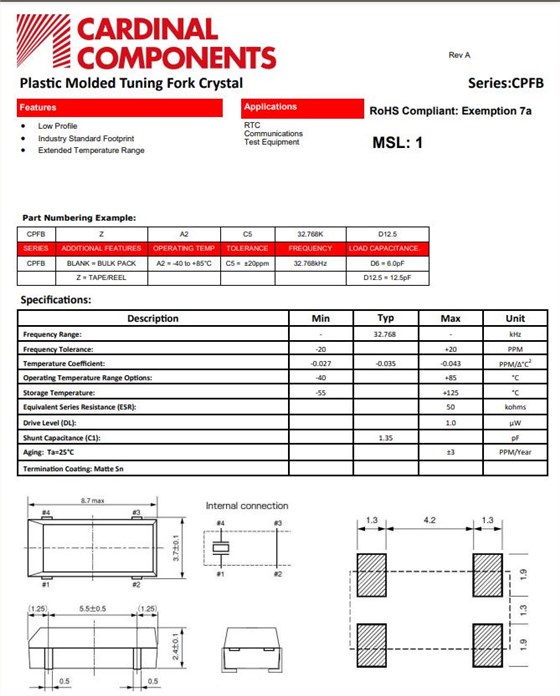

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪納爾進口晶振,32.768KHz 參數
| 項目 | 符號 | CPFB |
| 頻率 | f0 | 32.768KHz |
| 頻率公差 | △f/f0 | ±20ppm |
| 溫度系數 | TC |
-0.035typ PPM/Δ°C2 |
| 負載電容 | CL | 6pf |
| 工作溫度 | TOPR | －40℃～＋85℃ |
| 保存溫度 | TSTR | －55℃～＋125℃ |
| 串聯阻力 | R1 | 50KΩ Max. |
| 驅動級別 | DL | 1μW Max |
| 并聯電容 | C1 | 1.35pf |
| 老化（第一年） | △f/f0 | ±3ppm Max. |

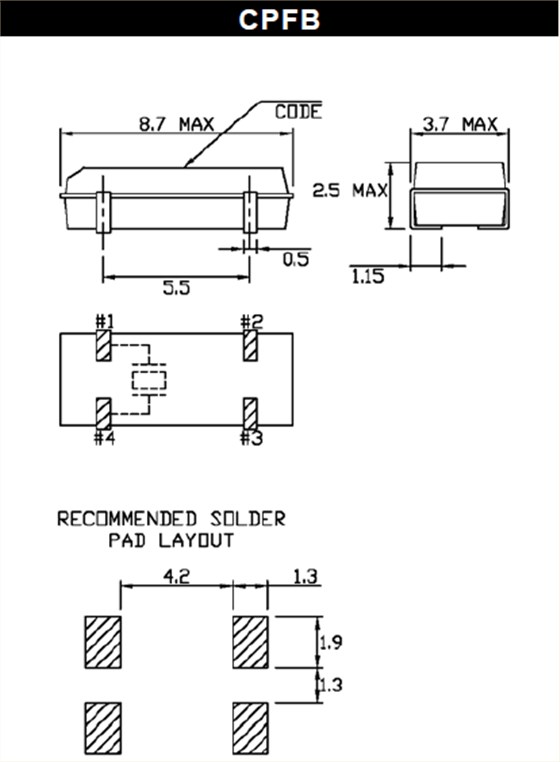

CPFBZ-A2C4-32.768KD6,-40~85°C,卡迪納爾進口晶振,32.768KHz尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 負載 | 頻率穩定度 | ESR 電阻 | 工作溫度 |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C4-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 10ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768KD12.5 | Cardinal晶振 | CPFB | 32.768kHz | 12.5pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
| CPFBZ-A2C5-32.768D6 | Cardinal晶振 | CPFB | 32.768kHz | 6pf | 20ppm | 50 kOhm | -40°C ~ 85°C |
