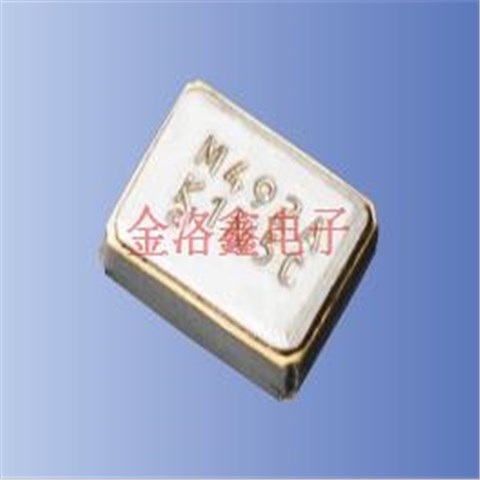

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振

產品簡介

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振,日本京瓷石英晶振在移動終端中,它為設備的基帶處理芯片,射頻收發模塊等提供精準的時鐘參考,保障設備能夠快速,準確地實現信號的調制,解調與傳輸,確保用戶在通話,上網,視頻流播放等各類通信應用中獲得流暢,穩定的體驗.在基站設備中,其穩定的頻率輸出對于保障基站與眾多移動終端之間的高效,可靠通信連接,實現大流量數據的快速傳輸與處理,提升整個移動通信網絡的覆蓋范圍與通信質量具有不可替代的作用

產品詳情

JLX-1

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振

KT1612A26000BCW18T作為一款先進的晶振產品,其在尺寸設計上充分體現了微型化的趨勢.采用類似泰晶科技研發的1612貼片晶振的超小尺寸封裝技術,能夠輕松適配各類對空間極為敏感的電子設備.在智能穿戴設備領域,如智能手表,無線耳機等,其小巧的身形可靈活嵌入狹小的內部空間,為產品實現更輕薄的外觀設計以及更多功能模塊的集成創造了有利條件.
TCXO(溫度補償晶體振蕩器)水晶振蕩器是頻率控制領域的高端產品,泰藝的該系列產品在技術上實現了諸多突破.在溫度補償機制方面,采用了先進的溫補芯片設計以及復雜的補償算法,能夠?qū)w因溫度變化而產生的頻率漂移進行精確修正.經過嚴格的高低溫循環測試,可在-40℃至+85℃的超寬溫度范圍內,將頻率偏差穩定控制在±30ppm以內,遠遠超越了普通晶體振蕩器的性能指標.這種極高的頻率穩定性使其在對頻率精度要求近乎苛刻的應用場景中成為不二之選.在5G通信基站中,精準的頻率同步是保障信號傳輸穩定性,降低信號干擾與誤碼率的關鍵.TCXO振蕩器為基站的射頻模塊,信號處理單元等提供高度精準的時鐘信號,確保不同基站之間以及基站與終端設備之間的通信順暢,有力推動了5G網絡高速率,低時延特性的實現.同時,在衛星通信,航空航天等高端領域,其穩定的頻率輸出對于保障數據的可靠傳輸,設備的精準控制同樣起著至關重要的作用

JLX-2

原廠型號Original model ：	KT1612A26000BCW18T	品牌 brand ：	京瓷晶振
Manufacturer品牌	京瓷晶振	Operating Temperature溫度	-30 ~ +85°C
Series型號	KT1612A	Current - Supply (Max)	-
Type 類型	TCXO	Package Height高度	0.55mm
Frequency 頻率	26MHz	Termination腳位	4 pads
輸出方式Output：	CMOS	Package Type封裝類型	4-SMD
Voltage - Supply電壓	1.8V	Packaging包裝	Tape and Reel
Frequency Stability頻率穩定度	±1.0 ppm	安裝方式Installation ：	Surface mount
Size / Dimension 尺寸	1612mm	最小包裝數 MPQ ：	3000

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振

JLX-3

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振

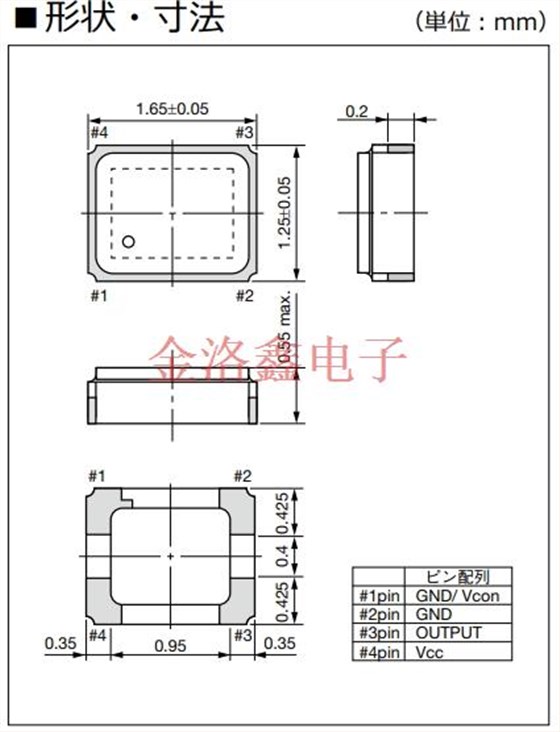

KT1612A_1.6_1.2 TCXO

KT1612A26000BCW18T,TCXO水晶振蕩器,KT1612A移動通信晶振

KC2016K1.50000C10E00	2.0 x 1.6mm	0.8	1.5	-10	70	± 50	CMOS
KC2016K1.50000C16E00	2.0 x 1.6mm	0.8	1.5	-40	105	± 50	CMOS
KC2016K1.50000C1GE00	2.0 x 1.6mm	0.8	1.5	-40	85	± 50	CMOS
KC2016K1.50000C1SE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 30	CMOS
KC2016K1.50000C1UE00	2.0 x 1.6mm	0.8	1.5	-10	70	± 25	CMOS
KC2016K1.84320C10E00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 50	CMOS
KC2016K1.84320C16E00	2.0 x 1.6mm	0.8	1.8432	-40	105	± 50	CMOS
KC2016K1.84320C1GE00	2.0 x 1.6mm	0.8	1.8432	-40	85	± 50	CMOS
KC2016K1.84320C1SE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 30	CMOS
KC2016K1.84320C1UE00	2.0 x 1.6mm	0.8	1.8432	-10	70	± 25	CMOS
KC2016K10.0000C10E00	2.0 x 1.6mm	0.8	10	-10	70	± 50	CMOS
KC2016K10.0000C16E00	2.0 x 1.6mm	0.8	10	-40	105	± 50	CMOS
KC2016K10.0000C1GE00	2.0 x 1.6mm	0.8	10	-40	85	± 50	CMOS
KC2016K10.0000C1SE00	2.0 x 1.6mm	0.8	10	-10	70	± 30	CMOS
KC2016K10.0000C1UE00	2.0 x 1.6mm	0.8	10	-10	70	± 25	CMOS
KC2016K10.2400C10E00	2.0 x 1.6mm	0.8	10.24	-10	70	± 50	CMOS
KC2016K10.2400C16E00	2.0 x 1.6mm	0.8	10.24	-40	105	± 50	CMOS
KC2016K10.2400C1GE00	2.0 x 1.6mm	0.8	10.24	-40	85	± 50	CMOS
KC2016K10.2400C1SE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 30	CMOS
KC2016K10.2400C1UE00	2.0 x 1.6mm	0.8	10.24	-10	70	± 25	CMOS
KC2016K10.5554C10E00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 50	CMOS
KC2016K10.5554C16E00	2.0 x 1.6mm	0.8	10.5554	-40	105	± 50	CMOS
KC2016K10.5554C1GE00	2.0 x 1.6mm	0.8	10.5554	-40	85	± 50	CMOS
KC2016K10.5554C1SE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 30	CMOS
KC2016K10.5554C1UE00	2.0 x 1.6mm	0.8	10.5554	-10	70	± 25	CMOS
KC2016K100.000C10E00	2.0 x 1.6mm	0.8	100	-10	70	± 50	CMOS
KC2016K100.000C16E00	2.0 x 1.6mm	0.8	100	-40	105	± 50	CMOS
KC2016K100.000C1GE00	2.0 x 1.6mm	0.8	100	-40	85	± 50	CMOS
KC2016K100.000C1SE00	2.0 x 1.6mm	0.8	100	-10	70	± 30	CMOS
KC2016K100.000C1UE00	2.0 x 1.6mm	0.8	100	-10	70	± 25	CMOS
KC2016K11.2896C10E00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 50	CMOS
KC2016K11.2896C16E00	2.0 x 1.6mm	0.8	11.2896	-40	105	± 50	CMOS
KC2016K11.2896C1GE00	2.0 x 1.6mm	0.8	11.2896	-40	85	± 50	CMOS
KC2016K11.2896C1SE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 30	CMOS
KC2016K11.2896C1UE00	2.0 x 1.6mm	0.8	11.2896	-10	70	± 25	CMOS
KC2016K12.0000C10E00	2.0 x 1.6mm	0.8	12	-10	70	± 50	CMOS
KC2016K12.0000C16E00	2.0 x 1.6mm	0.8	12	-40	105	± 50	CMOS
KC2016K12.0000C1GE00	2.0 x 1.6mm	0.8	12	-40	85	± 50	CMOS
KC2016K12.0000C1SE00	2.0 x 1.6mm	0.8	12	-10	70	± 30	CMOS
KC2016K12.0000C1UE00	2.0 x 1.6mm	0.8	12	-10	70	± 25	CMOS
KC2016K12.2880C10E00	2.0 x 1.6mm	0.8	12.288	-10	70	± 50	CMOS
KC2016K12.2880C16E00	2.0 x 1.6mm	0.8	12.288	-40	105	± 50	CMOS
KC2016K12.2880C1GE00	2.0 x 1.6mm	0.8	12.288	-40	85	± 50	CMOS
KC2016K12.2880C1SE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 30	CMOS
KC2016K12.2880C1UE00	2.0 x 1.6mm	0.8	12.288	-10	70	± 25	CMOS
KC2016K12.4560C10E00	2.0 x 1.6mm	0.8	12.456	-10	70	± 50	CMOS
KC2016K12.4560C16E00	2.0 x 1.6mm	0.8	12.456	-40	105	± 50	CMOS
KC2016K12.4560C1GE00	2.0 x 1.6mm	0.8	12.456	-40	85	± 50	CMOS
KC2016K12.4560C1SE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 30	CMOS
KC2016K12.4560C1UE00	2.0 x 1.6mm	0.8	12.456	-10	70	± 25	CMOS
KC2016K12.5000C10E00	2.0 x 1.6mm	0.8	12.5	-10	70	± 50	CMOS
KC2016K12.5000C16E00	2.0 x 1.6mm	0.8	12.5	-40	105	± 50	CMOS
KC2016K12.5000C1GE00	2.0 x 1.6mm	0.8	12.5	-40	85	± 50	CMOS
KC2016K12.5000C1SE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 30	CMOS
KC2016K12.5000C1UE00	2.0 x 1.6mm	0.8	12.5	-10	70	± 25	CMOS
KC2016K125.000C10E00	2.0 x 1.6mm	0.8	125	-10	70	± 50	CMOS
KC2016K125.000C16E00	2.0 x 1.6mm	0.8	125	-40	105	± 50	CMOS
KC2016K125.000C1GE00	2.0 x 1.6mm	0.8	125	-40	85	± 50	CMOS
KC2016K125.000C1SE00	2.0 x 1.6mm	0.8	125	-10	70	± 30	CMOS
KC2016K125.000C1UE00	2.0 x 1.6mm	0.8	125	-10	70	± 25	CMOS
