XRCLH10M000F1QA4P0-TAS-5032F石英晶振-10MHz-10ppm,日本MuRata晶振,XRCLH10M000F1QA4P0晶振,TAS-5032F石英晶振,頻率10MHz,精度10ppm,5032mm晶振,SMD晶體諧振器,無源晶振,高精度晶振,智能手機晶振,數字通信設備晶,無線路由器晶振,平板電腦晶振,藍牙模塊晶振.

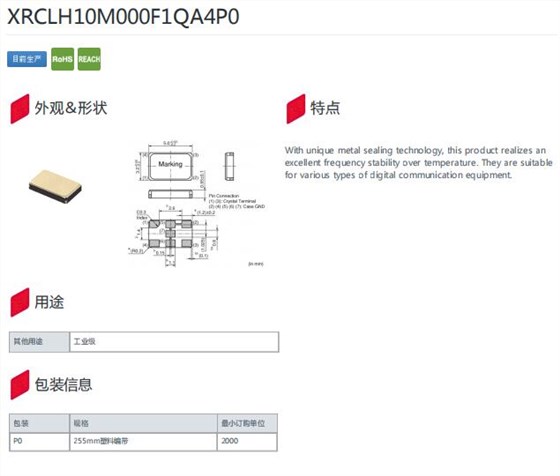

XRCLH10M000F1QA4P0-TAS-5032F石英晶振-10MHz-10ppm
| 型號 | TAS-5032F |
| 頻率 | 10.0000MHz |
| 頻率公差 | ±10ppm max.(25±3℃) |
| 工作溫度范圍 | -30℃ to 85℃ |
| 頻率溫度特性 | ±15ppm max. |
| 頻率老化 | ±1ppm max./year |
| 清洗 | Not available |
| 負載電容量 | 8pF |
| 等效串聯電阻(max.) | 60Ω |
| 驅動電平(max.) | 60μW |
| 形狀 | SMD |
XRCLH10M000F1QA4P0-TAS-5032F石英晶振-10MHz-10ppm特性

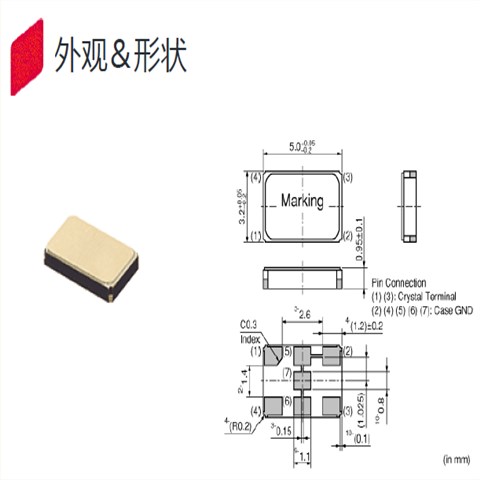

1.標準包裝尺寸(5032)，產品具有獨特的金屬密封技術。
2.本產品在溫度范圍內實現了極好的頻率穩定性。
3.適用于各種類型的數字通信設備。
XRCLH10M000F1QA4P0-TAS-5032F石英晶振-10MHz-10ppm
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 頻率溫度特性 | 等效串聯電阻( ) | 負載電容量 |
| XRCLH10M000F1QA4J1 | TAS-5032F | 10.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF |
| XRCLH10M000F1QA4P0 | TAS-5032F | 10.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF |
| XRCLH12M000F1QA0J1 | TAS-5032F | 12.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF |
| XRCLH12M000F1QA0P0 | TAS-5032F | 12.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 60Ω | 8pF |
| XRCLH14M745F1QA0J1 | TAS-5032F | 14.7456MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH14M745F1QA0P0 | TAS-5032F | 14.7456MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH16M000F1QA2J1 | TAS-5032F | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH16M000F1QA2P0 | TAS-5032F | 16.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH21M250F1QA0J1 | TAS-5032F | 21.2500MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH21M250F1QA0P0 | TAS-5032F | 21.2500MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH52M000F1QA1J1 | TAS-5032F | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
| XRCLH52M000F1QA1P0 | TAS-5032F | 52.0000MHz | ±10ppm max. (25±3℃) | ±15ppm max. | 40Ω | 8pF |
