當前位置：首頁 » 貼片晶振 » CTS晶振 » CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振

prevnext

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振

頻率：9.8304MHZ

尺寸：13.0mm x 4.95mm

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振,美國CTS晶振,ATSSM4P無源晶振,4P098F35IDT晶振,石英晶體諧振器,進口SMD晶振,頻率9.8304MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,無鉛環保晶振,低老化晶振,6G微處理器晶振,網絡應用晶振,消費電子產品晶振,無線通信晶振.

訂購熱線：0755-27837162

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振,美國CTS晶振,ATSSM4P無源晶振,4P098F35IDT晶振,石英晶體諧振器,進口SMD晶振,頻率9.8304MHz,負載18pF,頻率穩定性30ppm,工作溫度-40~85°C,無鉛環保晶振,低老化晶振,6G微處理器晶振,網絡應用晶振,消費電子產品晶振,無線通信晶振.

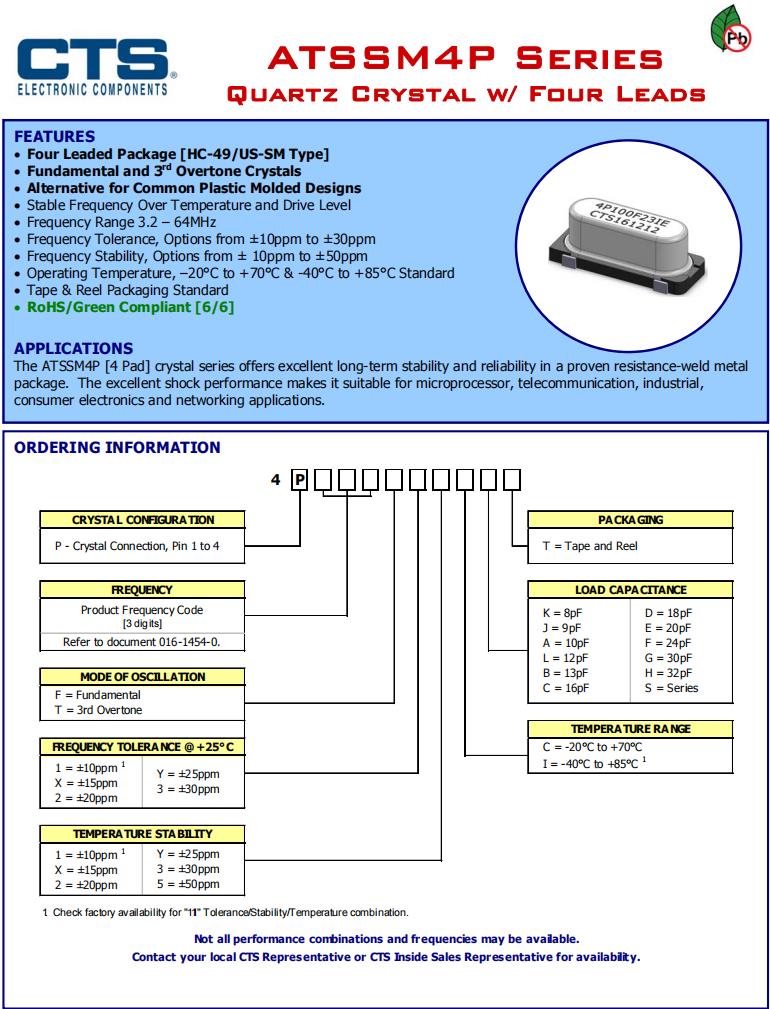

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振特征

•四腳封裝[HC-49/US-SM型]

•基本和第三泛音晶體

•常見塑料模塑設計的替代方案

•穩定的頻率過溫和驅動電平

•頻率范圍3.2 - 64MHz

•頻率公差，從±10ppm到±30ppm的選項

•頻率穩定性，從±10ppm到±50ppm的選項

•工作溫度，-20°C至+70°C和-40°C至+85°C標準

•膠帶和卷軸包裝可用

•符合RoHS/綠色標準[6/6]

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

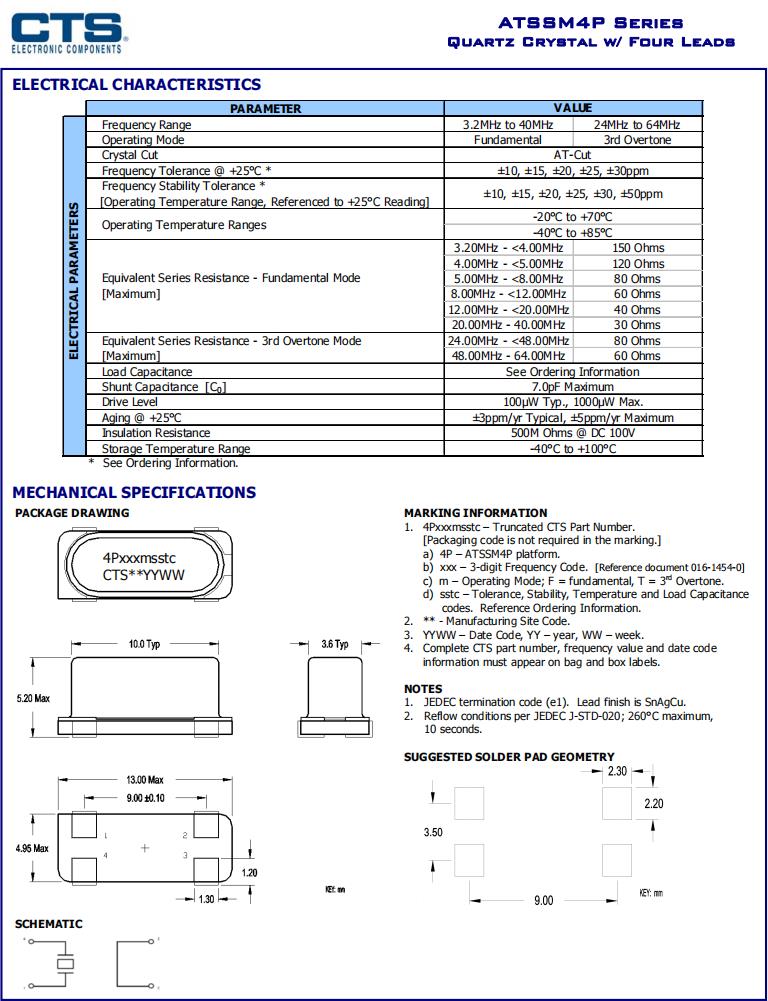

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振參數表

項目			數值
頻率			9.8304MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-40°C to +85°C
保存溫度			-40°C to +100°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 50PPM
等效串聯電阻(R1)			60 Ω
并聯電容 (C0)			7.0pF Maximum
負載電容 (CL)			18pF
激勵功率			1000 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500 Ohms @ DC 100V

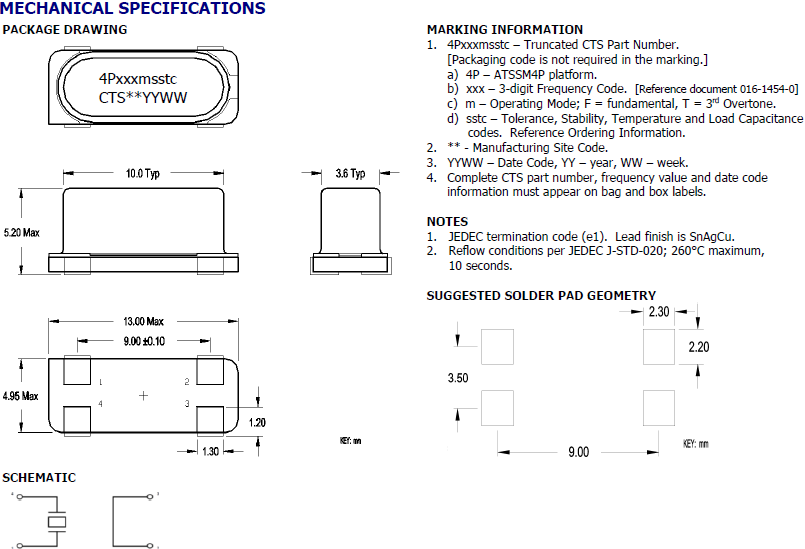

CTS晶振,ATSSM4P晶振,4P098F35IDT,6G微處理器晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
4P036F35CDT	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
4P036F35CET	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
4P036F35IST	CTS晶振	ATSSM4P	3.579545MHz	±50ppm	±30ppm	Series	150 Ohm	-40°C ~ 85°C
4P037F35CDT	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	18pF	150 Ohm	-20°C ~ 70°C
4P037F35CET	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	20pF	150 Ohm	-20°C ~ 70°C
4P037F35CST	CTS晶振	ATSSM4P	3.6864MHz	±50ppm	±30ppm	Series	150 Ohm	-20°C ~ 70°C
4P040F35IDT	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	18pF	120 Ohm	-40°C ~ 85°C
4P040F35IET	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	20pF	120 Ohm	-40°C ~ 85°C
4P040F35IST	CTS晶振	ATSSM4P	4MHz	±50ppm	±30ppm	Series	120 Ohm	-40°C ~ 85°C
4P049F35CDT	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	18pF	120 Ohm	-20°C ~ 70°C
4P049F35CET	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	20pF	120 Ohm	-20°C ~ 70°C
4P049F35CST	CTS晶振	ATSSM4P	4.9152MHz	±50ppm	±30ppm	Series	120 Ohm	-20°C ~ 70°C
4P050F35IDT	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
4P050F35IET	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
4P050F35IST	CTS晶振	ATSSM4P	5MHz	±50ppm	±30ppm	Series	80 Ohm	-40°C ~ 85°C
4P060F35CDT	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
4P060F35CET	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
4P060F35CHT	CTS晶振	ATSSM4P	6MHz	±50ppm	±30ppm	32pF	80 Ohm	-20°C ~ 70°C
4P073F35IDT	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	18pF	80 Ohm	-40°C ~ 85°C
4P073F35IET	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm	-40°C ~ 85°C
4P073F35IST	CTS晶振	ATSSM4P	7.3728MHz	±50ppm	±30ppm	Series	80 Ohm	-40°C ~ 85°C
4P080F35CCT	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	16pF	60 Ohm	-20°C ~ 70°C
4P080F35CDT	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P080F35CET	CTS晶振	ATSSM4P	8MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P098F35IDT	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P098F35IET	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P098F35IST	CTS晶振	ATSSM4P	9.8304MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P100F35CDT	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P100F35CET	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P100F35CST	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	Series	60 Ohm	-20°C ~ 70°C
4P100F35IDT	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P100F35IET	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P100F35IST	CTS晶振	ATSSM4P	10MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P111F35CDT	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
4P111F35CET	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
4P111F35CST	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	Series	60 Ohm	-20°C ~ 70°C
4P111F35IDT	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
4P111F35IET	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm	-40°C ~ 85°C
4P111F35IST	CTS晶振	ATSSM4P	11.0592MHz	±50ppm	±30ppm	Series	60 Ohm	-40°C ~ 85°C
4P120F35CDT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P120F35CET	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P120F35CHT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	32pF	40 Ohm	-20°C ~ 70°C
4P120F35CST	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P120F35IDT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P120F35IET	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P120F35IHT	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	32pF	40 Ohm	-40°C ~ 85°C
4P120F35IST	CTS晶振	ATSSM4P	12MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P122F35CDT	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P122F35CET	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P122F35CST	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P122F35IDT	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P122F35IET	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P122F35IST	CTS晶振	ATSSM4P	12.288MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P143F35CDT	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P143F35CET	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P143F35CST	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P143F35IDT	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P143F35IET	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P143F35IST	CTS晶振	ATSSM4P	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P147F35CDT	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P147F35CET	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P147F35CST	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P147F35IDT	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P147F35IET	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P147F35IST	CTS晶振	ATSSM4P	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P160F35CDT	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P160F35CET	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P160F35CST	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P160F35IDT	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P160F35IET	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P160F35IST	CTS晶振	ATSSM4P	16MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P184F35CDT	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-20°C ~ 70°C
4P184F35CET	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-20°C ~ 70°C
4P184F35CST	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	Series	40 Ohm	-20°C ~ 70°C
4P184F35IDT	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	18pF	40 Ohm	-40°C ~ 85°C
4P184F35IET	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm	-40°C ~ 85°C
4P184F35IST	CTS晶振	ATSSM4P	18.432MHz	±50ppm	±30ppm	Series	40 Ohm	-40°C ~ 85°C
4P200F35CDT	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P200F35CET	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P200F35CST	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P200F35IDT	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P200F35IET	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P200F35IST	CTS晶振	ATSSM4P	20MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P240F35CDT	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P240F35CET	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P240F35CST	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P240F35IDT	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P240F35IET	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P240F35IST	CTS晶振	ATSSM4P	24MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P24MF35CDT	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P24MF35CET	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P24MF35CST	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P24MF35IDT	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P24MF35IET	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P24MF35IST	CTS晶振	ATSSM4P	24.7456MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
4P250F35CDT	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	18pF	30 Ohm	-20°C ~ 70°C
4P250F35CET	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	20pF	30 Ohm	-20°C ~ 70°C
4P250F35CST	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	Series	30 Ohm	-20°C ~ 70°C
4P250F35IDT	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	18pF	30 Ohm	-40°C ~ 85°C
4P250F35IET	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	20pF	30 Ohm	-40°C ~ 85°C
4P250F35IST	CTS晶振	ATSSM4P	25MHz	±50ppm	±30ppm	Series	30 Ohm	-40°C ~ 85°C
