IQXC-25系列編碼LFXTAL059461REEL是一款超小型2012mm時鐘晶振32.768k晶振

來源：金洛鑫瀏覽：- 發布日期：2022-08-22 18:04:38【大中小】

分享到：

32.768K時鐘晶體具有小型,薄型,輕型的貼片晶振表面音叉型石英晶體諧振器,產品具有優良的耐熱性,耐環境特性,可發揮晶振優良的電氣特性,符合RoHS規定,滿足無鉛焊接的高溫回流溫度曲線要求,金屬外殼的封裝使得產品在封裝時能發揮比陶瓷諧振器外殼更好的耐沖擊性.

IQD晶振IQXC-25系列，編碼LFXTAL059461REEL，頻率32.768kHz時鐘晶振，石英晶體諧振器，小體積晶振尺寸2.0x1.2mm無源晶振，兩腳貼片晶振，用電子束密封金屬蓋包裝。具有超小型，輕薄型，適用于實時時鐘應用，智能手機，汽車電子，鐘表電子，平板電腦等。

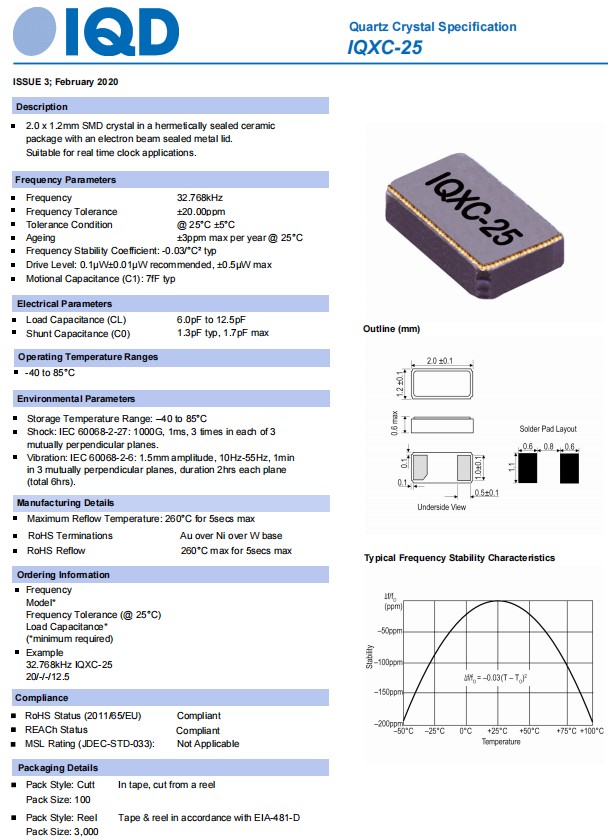

IQXC-25系列編碼LFXTAL059461REEL是一款超小型2012mm時鐘晶振32.768k晶振

Frequency	32.768k晶振
Frequency Tolerance	±20.00ppm
Tolerance Condition	@ 25°C ±5°C
Ageing	±3ppm max per year @ 25°C
Frequency Stability Coefficient:	-0.03°C² typ
Drive Level:	0.1μW±0.01μW recommended, ±0.5μW max
Motional Capacitance (C1):	7fF typ
Load Capacitance (CL)	6.0pF to 12.5pF
Shunt Capacitance (C0)	1.3pF typ, 1.7pF max
Operating Temperature Ranges	-40 to 85°C
Storage Temperature Range:	-40 to 85°C

制造商零件編號	制造商	描述	系列	頻率
LFXTAL084882REEL	IQD Crystal	32.7680KHZ CRYSTAL IQXC-217	IQXC-217	32.768 kHz
LFXTAL051643REEL	IQD Crystal	CRYSTAL 32.7680KHZ 9PF SMD	IQXC-25	32.768 kHz
LFXTAL050789REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	IQXC-25	32.768 kHz
LFXTAL084883REEL	IQD Crystal	32.7680KHZ CRYSTAL IQXC-217	IQXC-217	32.768 kHz
LFXTAL066198REEL	IQD Crystal	CRYSTAL 32.7680KHZ 9PF SMD	IQXC-90	32.768 kHz
LFXTAL009678REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	CFPX-217	32.768 kHz
LFXTAL084884REEL	IQD Crystal	32.7680KHZ CRYSTAL IQXC-217	IQXC-217	32.768 kHz
LFXTAL084885REEL	IQD Crystal	32.7680KHZ CRYSTAL IQXC-217	IQXC-217	32.768 kHz
LFXTAL073264Reel	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	IQXC-25	32.768 kHz
LFXTAL059461REEL	IQD Crystal	CRYSTAL 32.7680KHZ 7PF SMD	IQXC-25	32.768 kHz
LFXTAL062558REEL	IQD Crystal	CRYSTAL 32.7680KHZ 9PF SMD	IQXC-25	32.768 kHz
LFXTAL065455Reel	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	IQXC-25	32.768 kHz
LFXTAL025159REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	CFPX-56	32.768 kHz
LFXTAL002996BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF TH	WATCH	32.768 kHz
LFXTAL025159BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF TH	CFPX-56	32.768 kHz
LFXTAL014219BULK	IQD Crystal	CRYSTAL 32.7680KHZ 6PF TH	WATCH	32.768 kHz
LFXTAL002995BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF TH	WATCH	32.768 kHz
LFXTAL002997BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF TH	WATCH	32.768 kHz

IQXC-25系列編碼LFXTAL059461REEL是一款超小型2012mm時鐘晶振32.768k晶振

LFXTAL016178REEL	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	85SMX	32.768 kHz
LFXTAL003000REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	85SMX	32.768 kHz
LFXTAL050632REEL	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	85SMX	32.768k
LFXTAL066431REEL	IQD Crystal	CRYSTAL 32.7680KHZ 7PF SMD	IQXC-90	32.768 kHz
LFXTAL054236REEL	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	CFPX-217	32.768 kHz
LFXTAL009709REEL	IQD Crystal	CRYSTAL 32.7680KHZ 7PF SMD	CFPX-217	32.768 kHz
LFXTAL009706REEL	IQD Crystal	CRYSTAL 32.7680KHZ 9PF SMD	CFPX-217	32.768 kHz
LFXTAL065253REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	IQXC-90	32.768 kHz
LFXTAL066834REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	CFPX-217	32.768 kHz
LFXTAL003000BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	85SMX	32.768 kHz
LFXTAL016178BULK	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	85SMX	32.768 kHz
LFXTAL015822REEL	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	90SMX	32.768 kHz
LFXTAL003003REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	91SMX	32.768 kHz
LFXTAL003004REEL	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	90SMX	32.768 kHz
LFXTAL010193REEL	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	91SMX	32.768 kHz
LFXTAL010193BULK	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	91SMX	32.768 kHz
LFXTAL003003BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	91SMX	32.768 kHz
LFXTAL015822BULK	IQD Crystal	CRYSTAL 32.7680KHZ 6PF SMD	90SMX	32.768 kHz
LFXTAL003004BULK	IQD Crystal	CRYSTAL 32.7680KHZ 12.5PF SMD	90SMX	32.768 kHz

IQXC-25系列編碼LFXTAL059461REEL是一款超小型2012mm時鐘晶振32.768k晶振

石英晶體諧振器,石英晶振被廣泛應用于需要定時裝置的各種電子應用中.石英晶體的質量對石英晶體的性能至關重要,而石英的高Q系數則意味著可以實現緊密的性能,這是確保微處理器在客戶設計中正確工作的關鍵.IQD是一家石英晶體(XTAL),貼片晶振,有源晶振,恒溫晶體振蕩器,壓電水晶制造商,已有40多年的歷史,并提供了表貼式焊接以及插件焊接的石英晶體,石英晶體諧振器,具有廣泛的頻率選用范圍,滿足幾乎所有的產品應用。
